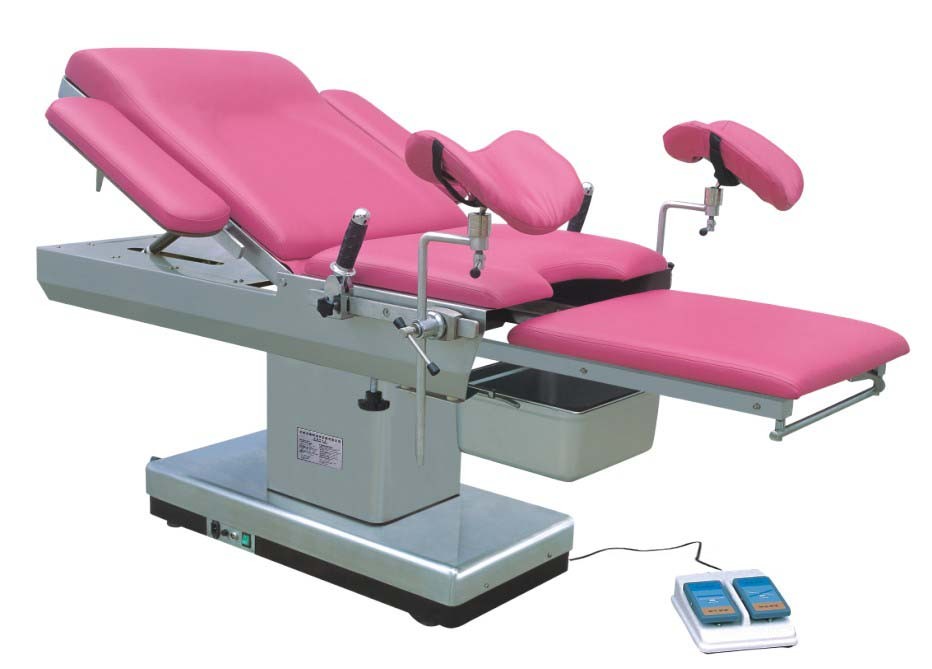

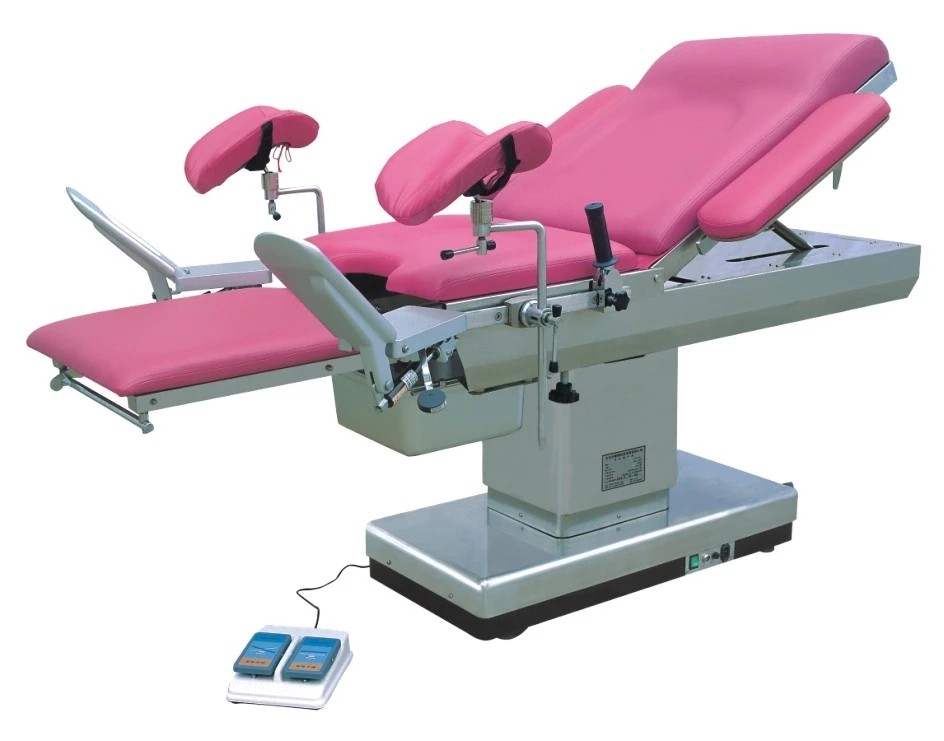

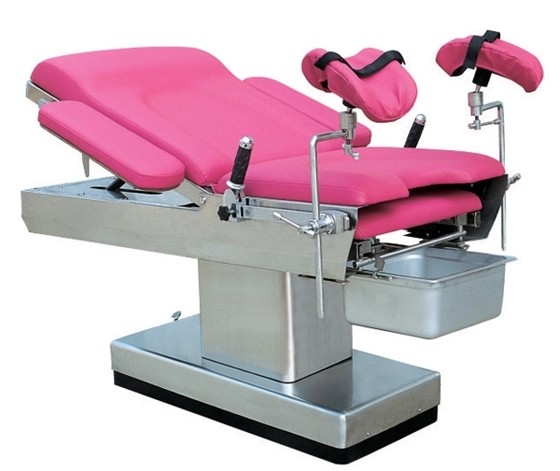

JFX-MOT005 multifunctional obstetric table

Product Description:

The obstetric table is used for childbirth, gynecology surgical operation, examining and many other functions.

 The whole bed’s up and down is controlled by electric and foot switch. The back plate is equipped with manual gas spring, vary angles can be achieved.

 The power system’s main part is made by Danish imported LINAK Motor, DC linear actuator; safety currency is DC24, which is stable and eco-friendly.

 The bed frame is made by imported US PU which is made by one time molding.

 The seamless mattress is equipped with pillow, which can make the lying woman feel comfortable.

 The waist part is equipped with foldable handle, which can be moved back and forth.

Hidden working station gives more space to the doctor and nurse.

Product Parameters:

Table top dimension: length 1900mm, width610mm

Min.& Max. table height:750mm～1000mm

Trendelenburg & reverse trendelenburg: reverse trend ≥ 15°, trend  ≥15°

Back section turning: 0～75°

Assist platform dimension: length550mm, width550mm

Arm rest swing out: ≥ 90°

Filth basin dimension:468×338×125mm(can be equipped with soft pipe)

Power: AC 220V 50HZ

Standard accessories

Waterproof cushion    1 set    Waist grab handle     1 pair

Leg holder      1 pair    Filth basin     1 piece

Arm rest         1 pair   Foot switch      1 piece

Clamp      1 pair

Note：Mattress made from mould, with no seam on the surface.
