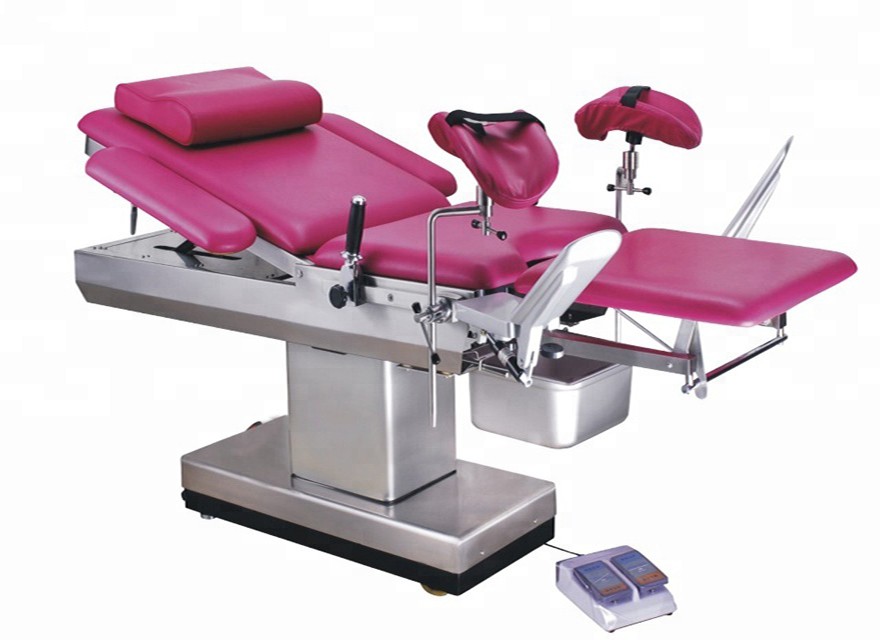

JFX-MOT004 multifunctional obstetric table

The obstetric table is used for childbirth, gynecology surgical operation, examining and many other functions, including urgent caesarean operation.

 The whole bed’s up and down, back and forth tile is controlled by micro touchable operator, the foot switch is optional.

 The power system’s main part is made by Danish imported Linak Motor, DC linear actuator, safety currency is DC24, which is stable and eco-friendly.

 The back plate is using manual gas spring, which can be adjusted to any angle freely.

The bed frame is made by imported PU which is made by one time molding.

The seamless mattress is equipped with pillow, which can make the lying woman feel comfortable.

The waist part is equipped with foldable handle, which can be moved back and forth.

 Hidden working station gives more space to the doctor and nurse.

The bed is equipped with separate foot rest, controlled by gas spring.

 The bottom plate’s fixing and moving are controlled by foot switch, which is quite convenient for the operators.

 The planks, basins and all outer shells are made of stainless steel, which makes nice appearance and easy cleaning

Product Parameters:

Table top dimension: length 1900mm, width610mm

Min.& Max. table height:750mm～1000mm

Trendelenburg & reverse trendelenburg: reverse trend ≥ 15°, trend  ≥15°

Back section turning: 0～75°

Assist platform dimension: length550mm, width550mm

Arm rest swing out: ≥ 90°  Footrest swing out: 0～45°  Footrest turn up: 0～45°

Filth basin dimension:468×338×125mm(can be equipped with soft pipe)  Power: AC 220V 50HZ

Standard accessories

Waterproof cushion  1 set    Waist grab handle   1 pair

Leg holder     1 pair     Filth basin   1 piece

Arm rest     1 pair     Foot switch     1 piece    Clamp    1 pair
