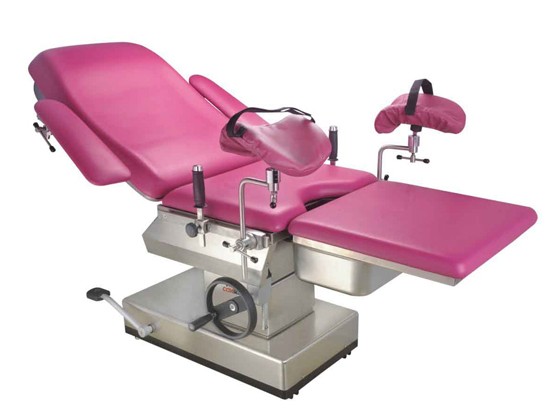

JFX-MOT002 treading hydraulic multifunctional obstetric table

Product Description:

 The obstetric table is used for childbirth, gynecology surgical operation, examining and many other functions, including urgent caesarean operation.

The ascent and decent of the whole set is controlled by pedal hydraulic, with a manual handle to make the platform to tile back and forth, back plate’s up and down.

 The handle is made by high quality aluminum, plug-in type platform can be removed easily when not using.

 The mattress is made by seamless covering. The bottom plate’s fixing and moving are controlled by adjustable rod, which can be locked as well.

Product Parameters:

Table top dimension: length 1895mm, width610mm

Min.& Max. table height:630mm～880mm

Trendelenburg & reverse trendelenburg: reverse trend ≥ 10°, trend  ≥15°

Back section turning: -10°～75°

Assist platform dimension: length550mm, width610mm

Arm rest swing out: ≥ 90°

Filth basin dimension:468×338×125mm(can be equipped with soft pipe)

Standard accessories

Waterproof cushion             1 set

Waist grab handle              1 pair

Leg holder                   1 pair

Filth basin                   1 piece

Arm rest                     1 pair

Clamp                       1 pair
