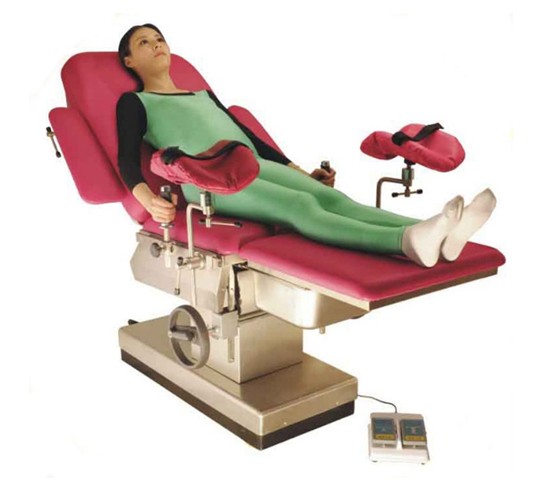

JFX-MOT003 semi-automatic multifunctional obstetric table

Product Description:

 The obstetric table is used for childbirth, gynecology surgical operation, examining and many other functions, including urgent caesarean operation.

 The power system’s main part is made by Danish imported Linak Motor, DC linear actuator, safety currency is DC24, which is stable and eco-friendly.

 , The bed frame is made by imported PVC which is made by one time molding.

 The seamless mattress is equipped with pillow, which can make the lying woman feel comfortable.

 The bottom plate’s fixing and moving are controlled by foot switch, which is quite convenient for the operators.

 The planks, basins and all outer shells are made engineering platic, which makes nice appearance and easy cleaning

Product Parameters:

Table top dimension: length 1900mm, width610mm

Min.& Max. table height:660mm～910mm

Trendelenburg & reverse trendelenburg: reverse trend ≥ 10°, trend  ≥15°

Back section turning: -10°～75°

Assist platform dimension: length550mm, width550mm

Arm rest swing out: ≥ 90°

Filth basin dimension:468×338×125mm(can be equipped with soft pipe)

Power: AC 220V 50HZ

Standard accessories

Waterproof cushion            1 set

Waist grab handle             1 pair

Leg holder                   1 pair
