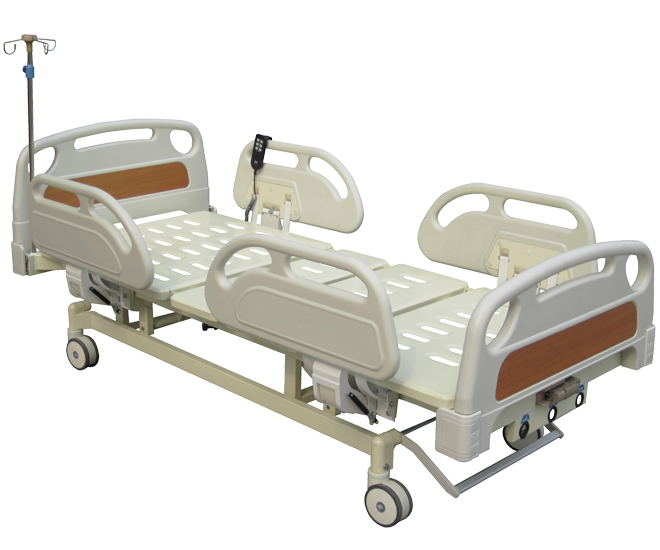

Electric Hospital Bed
Specification:
L2150*W1050*H460-750mm
1. The bed by Electric motor with manual crank together
2. Detachable ABS head/foot board
3. Collapsible ABS guardrails
4. Integrated stamping frame and mattress base are made of steel epoxy
5. I.V. ROD & Drainage hook
6. Center control lock
7. Optional input voltage: 220-240VAC 50Hz or 110-120VAC 60Hz
8. Output voltage: 24VDC
9. Optional accessory: Mattress & over-bed table & bedside cabinet
Material: Bed base, frame and leg are all made of cold-rolled steel plate and tube and coated by electrostatic spray after twice phospatization. The quality attains national standard. Head and foot boards are made of imported PP materials.
Can be controlled by electric motor and manual crank together;
Handset by the patient ;
Standard motors from Taiwan
Specifications:
Outside size | L2150*W1050*H460-720mm |
Inside size of mattress base | L1950*W830mm |
Head & foot board | Detachable ABS Head & foot board for CPR |
Guardrails | Foldaway side Guardrails made of ABS Plastic |
Handset | Handset by the patient |
Wheels | Center controlled lock |
Urine hooks | Urine hooks by steel chrome and Plastic dipping together |
Motors and crew rod system | Quiet and robust electric actuators and crew rods system provides reliable operation when no electricity |
Safe working load | The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 250kgs. |
Functions:
Back-rest lifting | 0-75°(±2%) by electric motors and crank |
Knee-rest lifting | 0-45°(±2%) by electric motors and crank |
Height adjustable | H460-720mm by electric motors and crank |
