Electric Hospital Bed

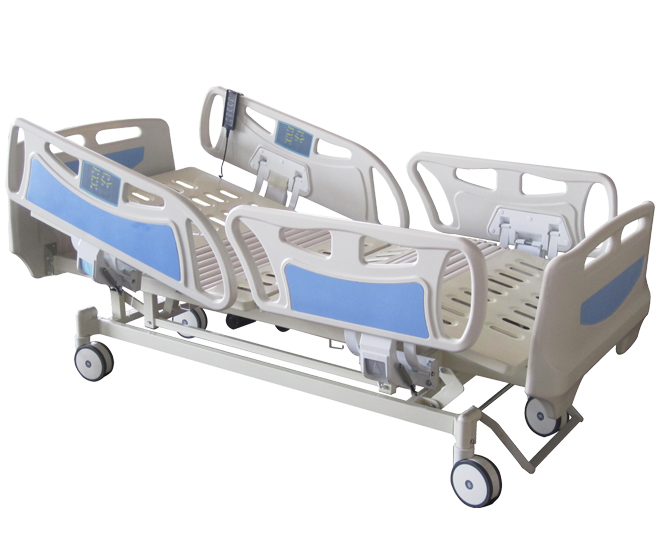

JFX-EB003 Five Functions Electric Bed

Functions:

Specification: L2150*W1050*H460-750mm

1. Detachable ABS head/foot board

2. Collapsible ABS guardrails

3. Control button for outside of side rails

4. Integrated stamping frame and mattress base are made of steel epoxy with ABS soft joint

5. I.V. ROD & Drainage hook

6. Center control lock

7. Optional input voltage: 220-240VAC 50Hz or 110-120VAC 60Hz

8. Output voltage: 24VDC

9. Optional accessory: Mattress & over-bed table & bedside cabinet & Back-up battery & CPR control

Material:

Head and foot boards are made of imported PP materials

Center controlled lock

Patient control Embedded in side guardrails

Manual CPR Handles Each side on head side

Standard motors from Taiwan;

Specifications:

Outside size	L2150W1050H460-750mm
Inside size of mattress base	L1950*W900mm
Head & foot board	Detachable ABS Head & foot board for CPR
Guardrails	Foldaway side Guardrails made of ABS Plastic
Handset	Handset by the patient
Wheels	Center controlled lock
Urine hooks	Urine hooks by steel chrome and Plastic dipping together
Motor	Quiet and robust electric actuators provide reliable operation
Motor	Standard motors from Taiwan; Linak motor from Denmark
Nurse controller	No
Patient control	Embedded in side guardrails
Safe working load	The quality attains national standard. It is equipped with electric motor which is quiet and noiseless and able to support over 250kgs.

Functions:

Standard Accessories:

Head & foot board	1set
Guardrails	4pcs
Wheels	4pcs
Motors	4pcs
Handset Embedded in side guardrails	2pcs
Back-up battery	1pc
Nurse controller	no
Urine hooks	4pcs
I.V. drip holes	4pcs
I.V. pole	1pc
