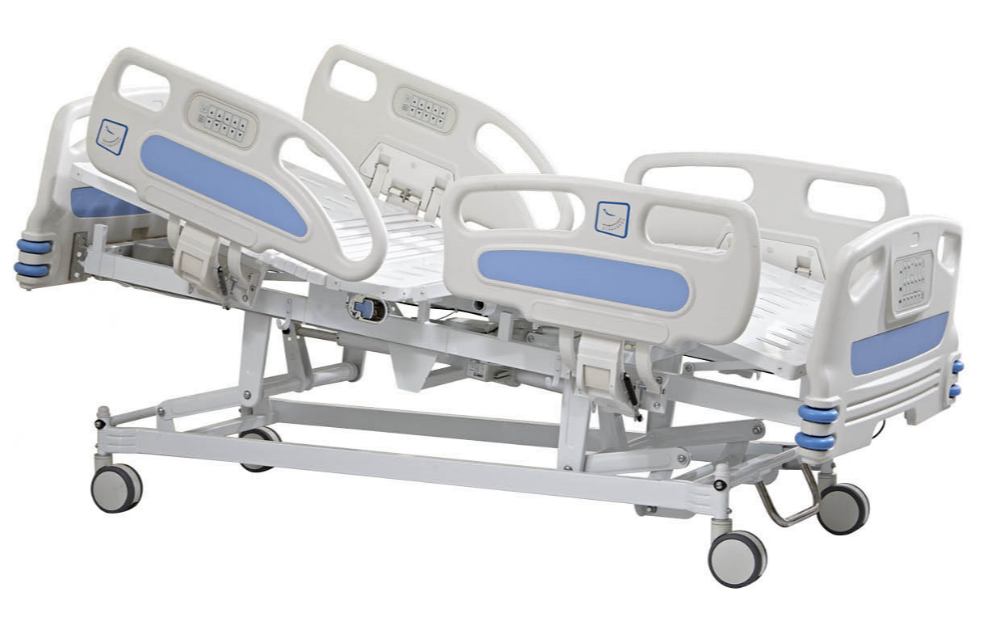

JFX-EB017 Electric 5 functions bed

Main functions:

A:Back section up/down. B:Knee section up/down.

C:Whole bed up/dwon.    D: Trendelenburg  and Reverse Trendelenburg.

Related parameters:

Overall dimension：L2240*W1160*H480-770mm

Back rest tilting：80°±5°，knee board tilting：40°±5°

Hi-lo adjustment between：480-770mm;

Reverse and trendelenburg 15°±2°;

Standard configuration：

4pcs advanced medical actuators,1pcs control box，

central-controlled brake system,4pcs luxurious central locking castors;

1 pair plastic head/foot-end board with built in control panel;

1 pair PP siderails with built in control panels.

4pcs urine hooks;

1pcs S.S I.V pole;

Options：

Backup power system (UPS)； CPR function；

Medical mattress； dining board；bedside cabinet；

patient file panel；sundries basket
