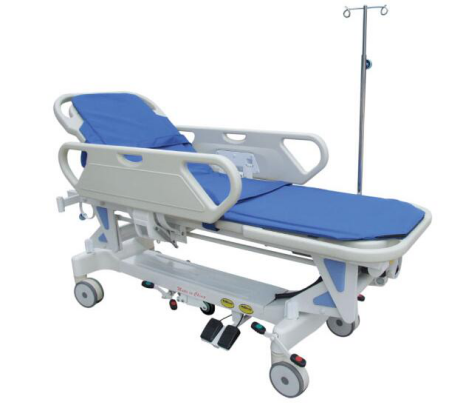

JFX-ST008 Luxurious Electric Rise-and-Fall Stretcher Cart

Size: 1930*640*500/900mm
Material:
The cart frame is made of quality aluminum alloy. The cart surface and side rails are shaped by once injection molding of imported PP engineering plastics, it’s equipped with imported motors as for rise-and-fall system.
Descrption:
The international advanced centrally controlled brake system is applied to the cart and therefore stable and reliable. The cart surface is of separate structure with the back rest section supported by the imported pneumatic spring. Rise and down can be controlled by the electric controlled treadle lying on two sides of the bed (motor with battery), or done by the crank which generally kept at the end section of the cart when without electric power. Thus the cart is operated easily and simply.
Technical Features
Full Length 193CM
Full Width 64CM
Bed Base Height Range Maximum    Height    90CM
Minimum     Height    50CM
Bed Base Angle Position Adjustable
Back section panel    0-75°
Maximum safe load 250KG
Diameter of Centrally Control Silent and Dustproof Castor 15CN
Special Allocation
• Linak Electrical Motor
• Electronic Control Panel
• I.V.Pole
• Retractable fifth wheel
• Mattress (optional)
• PP Side Rail
• PP Bed Base
• CPR
• Top Coat: Electrostatic Power Coating

• Bed Frame: Aluminum Alloy Side Rail
