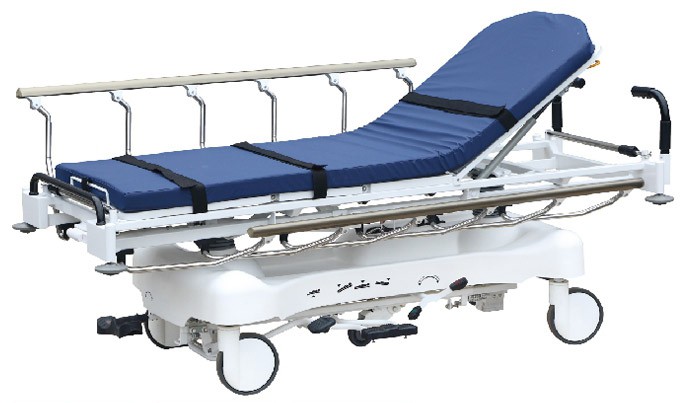

JFX-ST005-1 Luxurious Hydraulic Rise-and-Fall Stretcher Cart

Product Size: 2200*760*560/890mm

Material:  The bed is made of galvanized steel tube and surface coated by electrostatic spray. The back board is made of American electrotyped board with X-ray cassette. It is equipped with the imported double hydraulic rise-and-fall system.

Description: The international advanced centrally controlled brake system is applied to the cart and 200 dustproof castors make the cart move steadily, reliably and lightly. The bed can be raised and lowered , tilted forward and backward which is controlled by the treadle lying on two sides of the bed. The bottom cover is made of PP material and shaped by once injection that can be easily cleaned. The cart surface is of separate structure and the upper part is supported by the imported large hydraulic pole to make the bed never sway. It is completed with infusion stand, drainage hook and collapsible aluminum alloy side rails. It is the best choice for emergency room, ICU, ICU bed and emergency bed for transferring patient.

Technical Features

Bed Base Angle Position Adjustable

  Back section panel            0-75°

Leg section panel               0-45°

Trendelenburg                    0-15°

Anti-Trendelenburg             0-15°

Maximum safe load 250K

Diameter of Centrally Control Silent and Dustproof Castor 20CM

Special Allocation

• Two Separate Hydraulic Pump

• two foldable I. V. Pole

• Hydraulic control panel

• Mattress 6cm thickness

• Aluminum Alloy Side Rail

• CPR

• Top Coat: Electrostatic Powder coating

• Bed frame: Cold-Rolled Steel Tube
