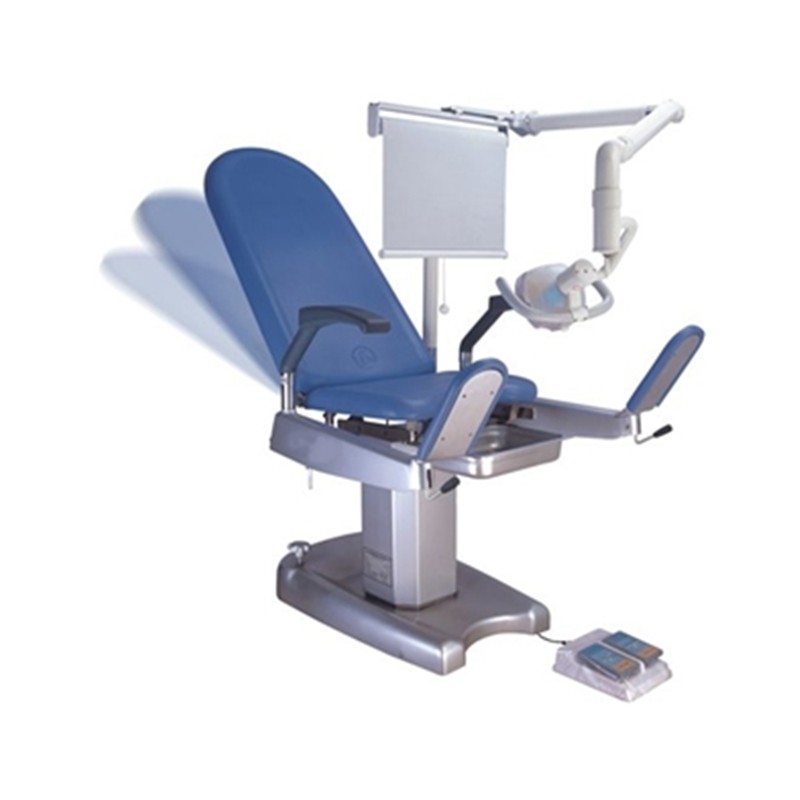

JFX-GEB011 gynecological operation table

Product Description:

 the gynecologic operation table for the assembly of imported models, simple operation can be suitable for various gynecological examination, gynecological operation and diagnosis.

The leg supports can be move left and right, up and down to support operation needs.

 Operation table with optional cold light source; can be up and down, left and right, and arbitrary angle adjustment. Optional curtain can reduce the fear of patients.

 The bed panel cover adopts engineering plastics mold molding, the lifting upright post cover is made of steel structure, which is characterized by nice appearance and easy to clean.

 The whole bed is made by Japanese imports Achilles (PVC) die molding (seamless foreskin) which is antibacterial, dirt  Power system equipped with Danish LINAK linear motor, the voltage is 24V, in order to ensure the stability of operation.

 The base’s wheel is swivel wheel, which make the operation quite convenient.

Technical Parameters

Table top dimension: length 1700mm, width 500mm

Min. & Max. table height: 660mm~910mm

Back section turning: 25°~75°

Seat section turning: -12°~32°

Arm rest swing out:90°

Foot rest pedal swing: down≤5°,up≥75°

Foot rest swing out: ≥30°

Lamp adjust angle: 60°

Power: Depend on different countries

Standard accessories

Shadowless lamp      1set

Foot switch          1piece

Leg holder           1pair
