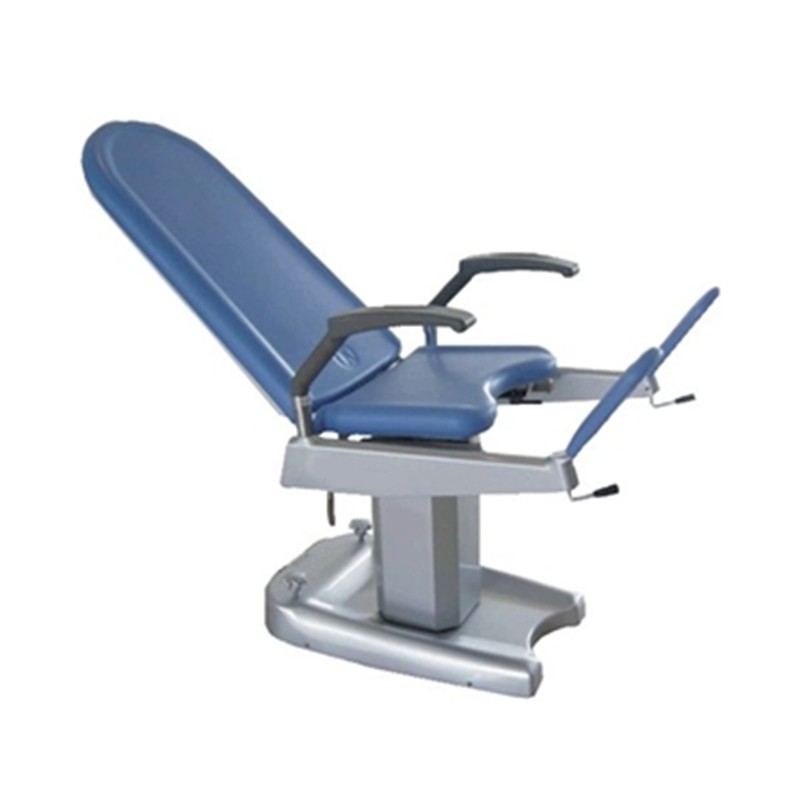

JFX-GEB010 gynecological examination bed

Product Description:

 The gynecologic operation table for the assembly of imported models, simple operation, can be suitable for various gynecological examination, gynecological operation and diagnosis;

  The integral lifting and downwards, backward and forward is controlled by electric. The back part’s up and down is controlled by gas spring. The support legs can be adjusted up and down, right and left freely, the patient’s position can be adjusted according to actual situation of operation. .

 The bed pan cover adopts engineering plastics mold molding, the lifting upright post cover made by steel structure, which is characterized by nice appearance and easy to clean

 The whole bed is made by Japanese imports Achilles (PVC).

 Power system for the Danish LINAK linear motor, the voltage is 24V, in order to ensure the reliability of operation.

 Below the base plate is provided with a stainless steel basin

 The base’s wheel is swivel wheel, which make the operation quite convenient.

Technical Parameters

Table top dimension: Length 1700mm,   Width 500mm

Min. & Max. table height: 660mm ~ 910mm

Back section turning: 25°~75°

Seat section turning: -12°~32°

Arm rest swing out:90°

Foot rest pedal swing: down≤5°, up≥75°

Foot rest swing out: ≥30°

Lamp adjust angle: 60°

Power: AC 220V 50HZ

  STANDARD ACCESSORIES

Foot switch 1 piece

Leg holder 1 pair
