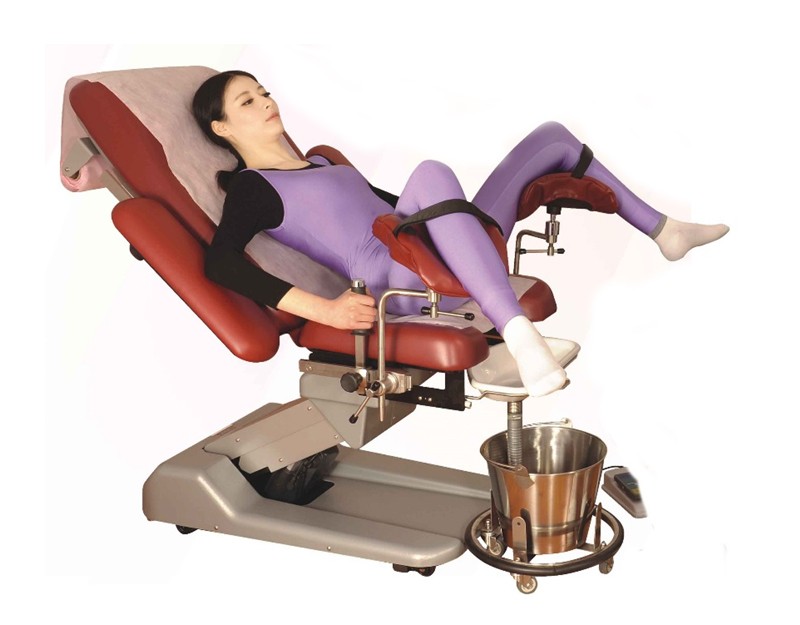

JFX-GEB008 gynecological examination bed

 Product Description:

The gynecologic operation table is suitable for gynecological examination, gynecology and urology operation and diagnosis.

 The integral lifting and downwards, back turned is controlled by electric. The leg rest plate is manually control. The support legs and other accessories can be adjusted according to actual situation of operation.

 The chassis cover adopts engineering plastics molding, beautiful appearance, and durable, easy to clean.

 A soft pad is arranged in the middle of a semicircular notch, which is convenient for operation. The pad can also be easily remove and clean. A pluggable leg rest plate, which can make the patient’s leg comfortable.

 Back is provided with a scroll of paper, for the installation of disposable tissue.

Below the base plate is provided with engineering plastic dirt basin.

Technical Parameters

Table top dimension: Length 1700mm,   Width 500mm

Min. & Max. table height: 660mm ~ 910mm

Back section turning: 25°~75°

Seat section turning: -12°~32°

Arm rest swing out:90°

Foot rest pedal swing: down≤5°, up≥75°

Foot rest swing out: ≥30°

Lamp adjust angle: 60°

Power: AC 220V 50HZ

Standard Accessories:

The foot pedal switch 1      Handrail 1     Leg rest 2

Bearing device 1             Auxiliary table 1

Sewage water basin 1         The paper roll 1

The electric source line 1

Selected parts               Foot pedal 1 pay
