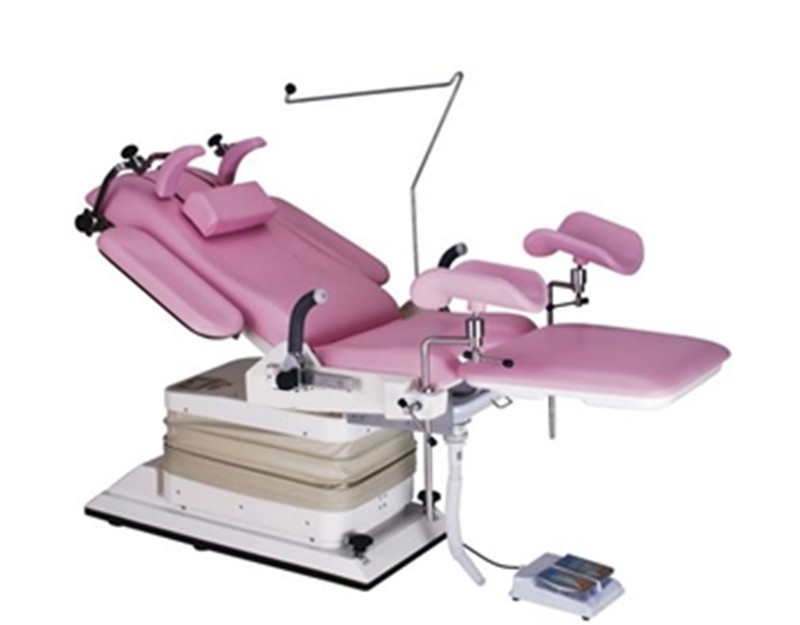

JFX-GEB006 electric gynecological operation table

Product Description:

 The position of the patients can be adjusted according to practical situation.

 The back section adopts the gas springs subassembly, assistants the operator to regulate the angle of the back bed section.

The seat sections can up-ward and down-lean together with the back section.

 the gynecologic operation platform is a comprehensive electric operation table, assembly of imported Linak motor,

 The operation table can be adjusted according to the according to the medical staff's height.

 Equipped with cold light sourcing, it which can be adjusted up and down, right and left.

 The bed cover with Japanese imports of Achilles (PVC) adopts engineering plastics mold molding, characterized by clean, corrosion-resistant dirty.

 The bed base is provided with a universal wheel, which make the moving and locking quite easily.

Technical Parameters

Table top dimension: Length 1700mm,   Width 500mm

Min. & Max. table height: 660mm ~ 910mm

 Back section turning: 25°~75°

Seat section turning: -12°~32°

Arm rest swing out:90°

Foot rest pedal swing: down≤5°, up≥75°

Foot rest swing out: ≥30°

Lamp adjust angle: 60°

Power: AC 220V 50HZ

Standard parts

The foot pedal switch 1     Shoulder support 1 pay

The pillow head 1           Hand plate 1 pay

Hand 1                      Anesthetic screen frame 1

Sewage water basin 1        Legrest 1 pay
