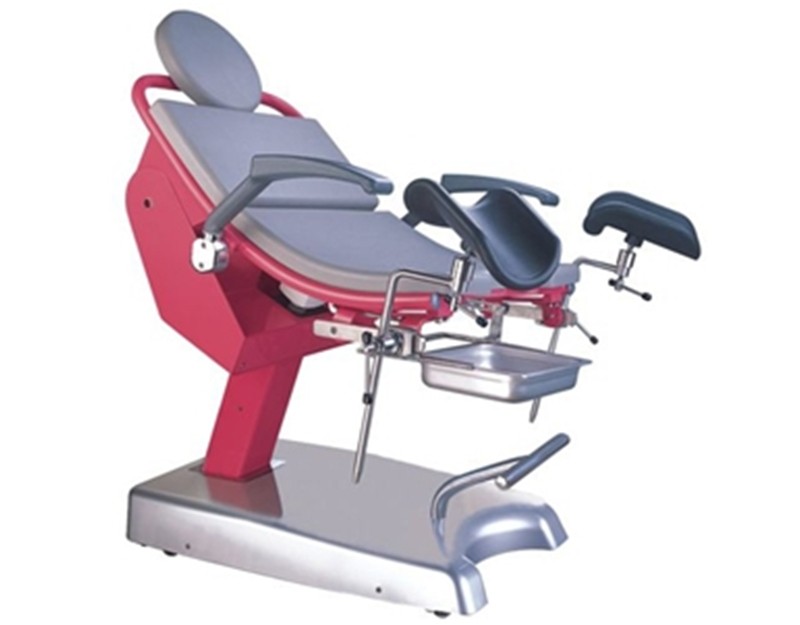

JFX-GEB005 gynecological examination bed

Product Description:

 the gynecologic operation station is with novel appearance and simple structure. It can be divided into 3 parts: the base, the middle support frame and table.

 The operation desk operation is extremely simple, different clinical angle table can be controlled by an electric push rod control. The hand support on both sides of the body, leg rest and the stainless steel dirt basin can be manually adjusted.

The head pillow is soft polyurethane foam molding, and can be easily disassembled for cleaning, disinfection. The lower part is provided with”roll paper storage", the paper can be pulled out when needed, which minimize dirt contamination.

 the middle support frame is equipped at the head end, which can provide enough space for the operation of medical staff. Both sides can be added for vaginal frame according to customer requirements.

Technical Parameters

Table top dimension: Length 1700mm,   Width 500mm

Min. & Max. table height: 660mm ~ 910mm

 Back section turning: 25°~75°

Seat section turning: -12°~32°

Arm rest swing out:90°

Foot rest pedal swing: down≤5°, up≥75°

Foot rest swing out: ≥30°

Lamp adjust angle: 60°

Power: AC 220V 50HZ

Standard accessories:

Leg holder          1 pair

Clamp             1 pair

Paper roll holder     1 piece

Basin              1 piece

Electric wire        1 piece
