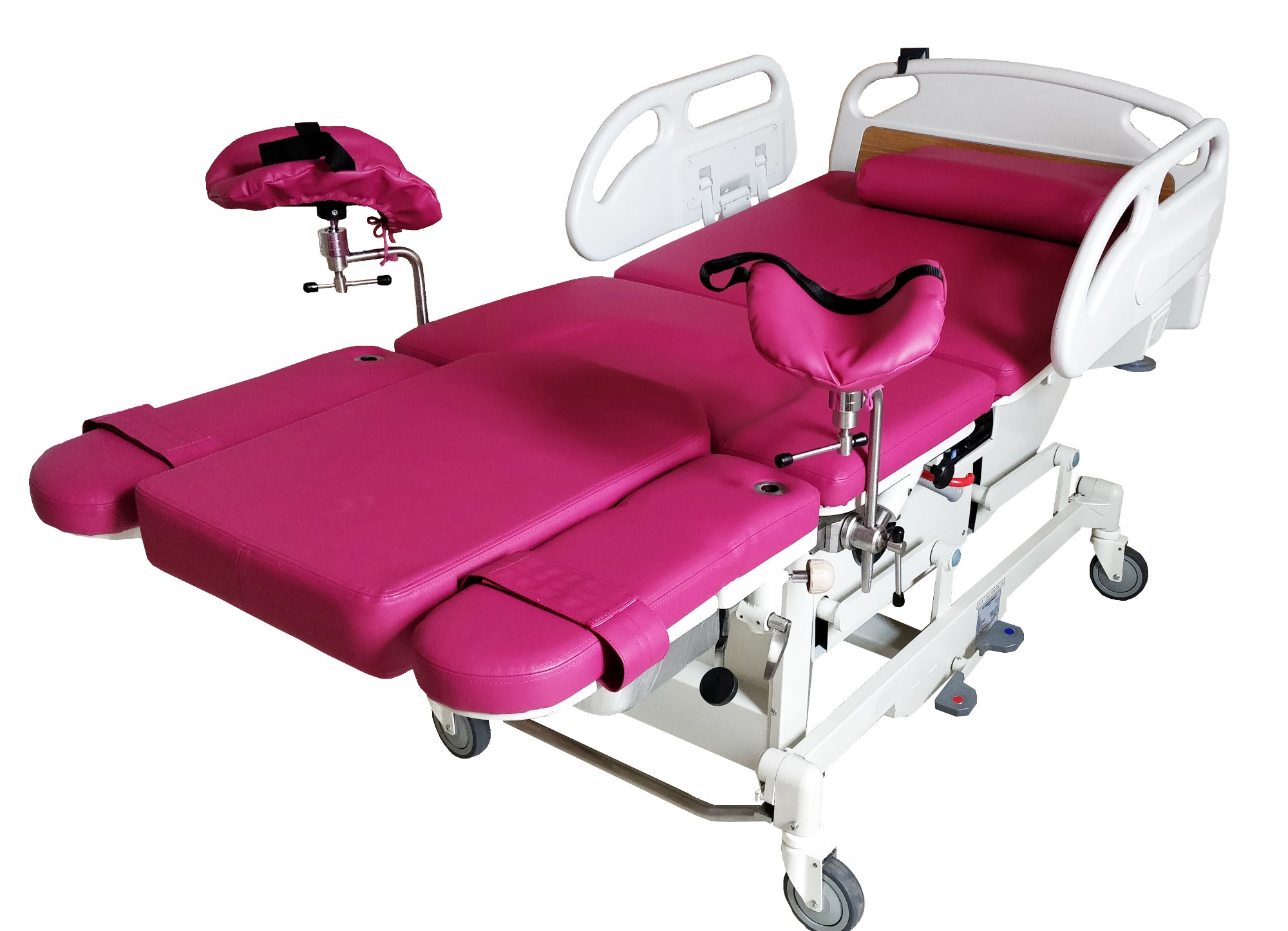

JFX-DB001 Economic LDR bed

Function:

 It has got 5 national patents including an exterior patent.

 The driven and control system use imported Linak motors which are safe, reliable, easy operated and with low noise. Both families and nurses can operate it.

 The bed can equipped with a CD player to relax the lying-in women.

 Bed head end and guardrail are made from high strength plastic, which have nice appearance. They can be loaded or retracted easily.

 Bed height is adjustable electrically; the back section upward, trendelenburg and reverse trendelenburg are electric controlled too. Leg section is removable.

There is filth basin under the seat, it is easy to adjust the position of lying-in women and help delivery process by combining use of the leg holder, assistant table and foldable footrest.

The bed is dirt free, easy cleaned. The central brake provides the bed a better stability.

Product Parameters:

Bed dimension including bed end and bumper wheel： Length1930mm,width940mm

Bed dimension: Length1815mm,width780mm

Bed height： lowest≤680mm, highest≥920mm (exclude the cushion)

Back section turning：  ≥60°

Trendelenburg and reverse trendelenburg: reverse trend≥5°, trend≥8°

Footrest swing out： ≥45°

Footrest folding: ≥45°

Guard rail up/down movement:360mm

Castor dia.:150mm

Standard accessories

Leg holder      1 pair      Filth basin      1 piece

I.V. stand       1 piece    Hand control    1 piece

Power cord     1 piece      Optional accessory CD player
